Specifications

Motor: 2,2kW (3hp), 2800rpm
Blade: 10" (25,4cm) diameter
5/8" (16mm) arbor hole
3400 rpm
Tilt: 45° to the right
Transmission: Twin V-belts and Pulleys
Rip capacity: 630mm (860mm with optional longer rail and Rip Fence support)
Crosscut capacity: 640mm (using the short Fence at 0° on the Sliding Table with blade full up)
Crosscut capacity: 920mm (using the long Fence at 0° on the Outrigger Table with blade full up)
Max depth of cut: 70mm at 0º tilt
Overall size:
Length: L 1000mm
Height: H 900mm
Width: W 1590mm (with the short Crosscut Fence and no Outrigger Table)
W 2070mm (with the Outrigger Table and its longer Fence)
Additional Features: Integral Dust Collection (with Thien Separator and vacuum cleaner motor)
Retractable Wheels
Length of Sliding Table: 1000mm
Sliding Table travel: 1040mm

Note

Crosscut capacities increase as the thickness of the workpiece decreases. As an example:
Crosscut capacity: 680mm (using the short Fence at 0° on the Sliding Table to cut 19mm thick workpiece)
Crosscut capacity: 940mm (using the long Fence at 0° on the Outrigger Table to cut 19mm thick workpiece)
The above figures consider a 25mm blade height.

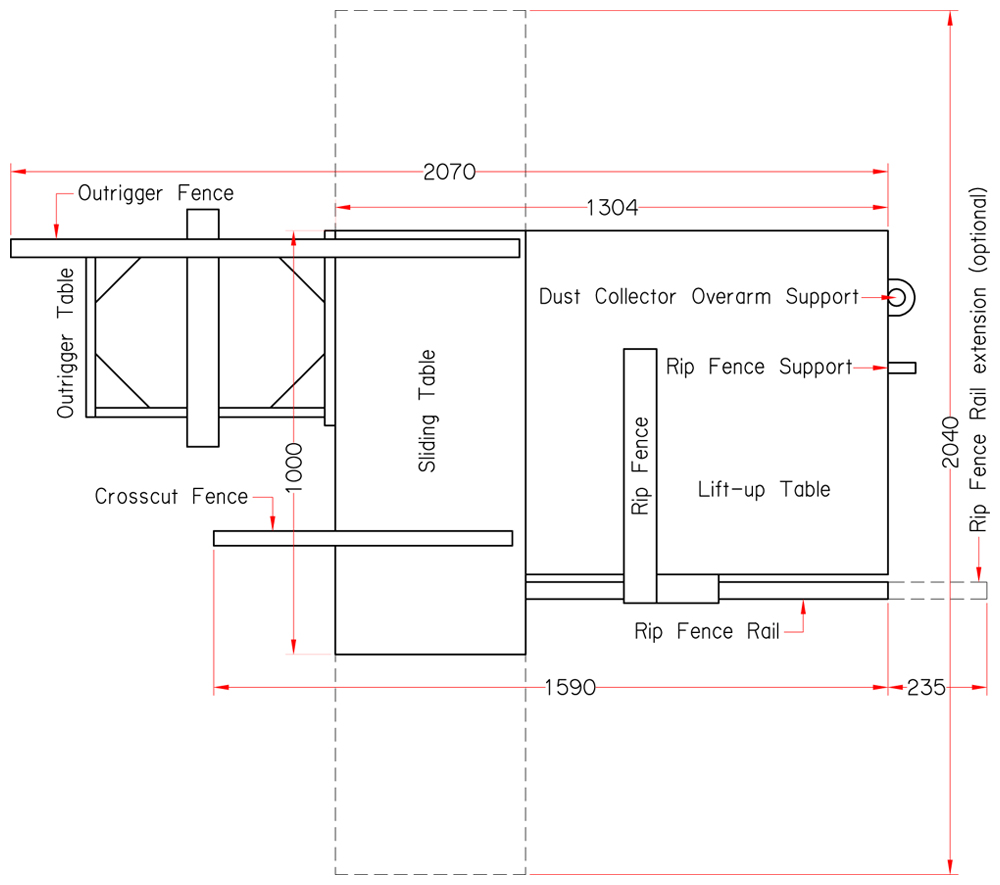

Required Space

Requiered Space
